The Kudryavka Sequence

challenge information

IERAE CTF2024 reversing(easy)

analysis

attachment binary was PE.

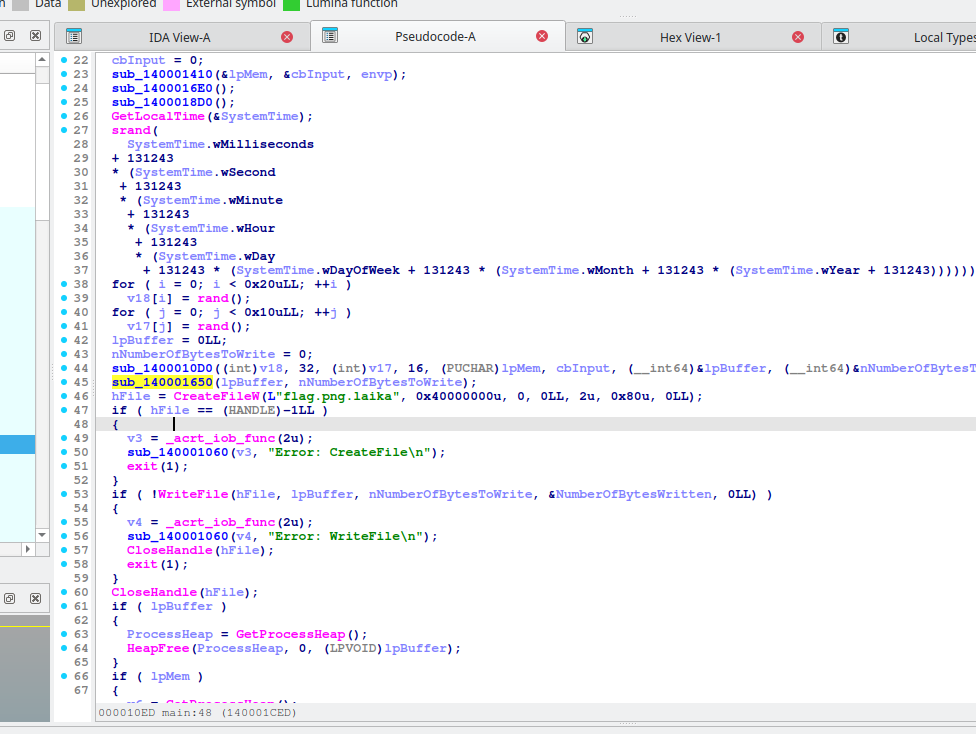

  • main

    • the omitted pseudo of main function

    • sub_1400016E0(); reads flag.png

    • sub_1400016E0(); deletes flag.png

    • sub_1400018D0(); creates statement.png

    • encrypt flag.png with the seed created with the time

    • sub_1400010D0(); encrypts the flag.png

    • Described later sub_140001650(lpBuffer, nNumberOfBytesToWrite);

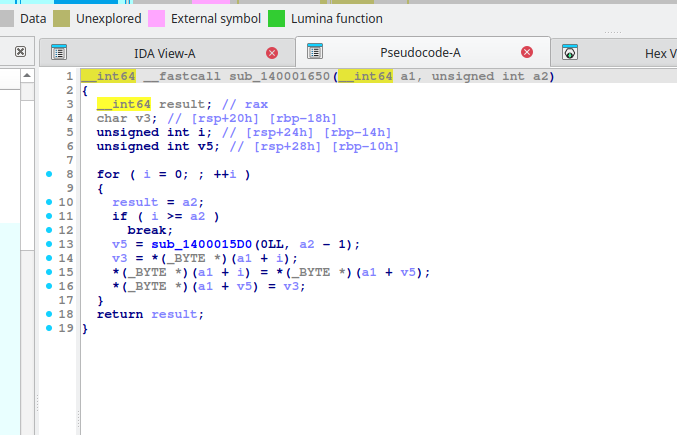

  • sub_140001650

    • this function shuffles the data, especially in this challenge, it shuffles the data of encrypted flag.png

    • sub_1400015D0 gives a special randomization, described later.

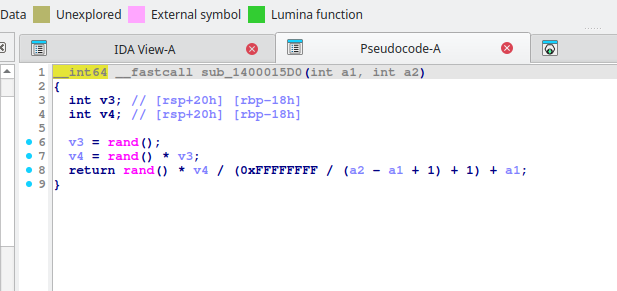

  • sub_1400015D0

    • as you can see, there's a rand() function.

    • as I described at the first, this binary is worked on Windows, so that this rand() depends on the windows.h

    • the important things is the logic of generating the random of windows and gcc is not equal.

    • I didn't have an environment for C in windows, so I made LLM write a random function that is a same logic as the windows one.

class WindowsRand: def __init__(self, seed: int): self.seed = seed def rand(self): self.seed = (self.seed * 214013 + 2531011) & 0xFFFFFFFF return (self.seed >> 16) & 0x7FFF def srand(self, seed: int): self.seed = seed

my solution is doing brute-force of the millisecond with the file's metadata.

[~/dc/ctf/ierae4/rev/kudryavka/distfiles] >>>exiftool flag.png.laika ExifTool Version Number : 12.40 File Name : flag.png.laika Directory : . File Size : 804 KiB File Modification Date/Time : 2024:09:17 12:49:20+09:00 File Access Date/Time : 2025:01:26 10:48:40+09:00 File Inode Change Date/Time : 2024:09:23 16:12:23+09:00 File Permissions : -rwxr-xr-x Error : Unknown file type

by reading the file metadata, we were able to determine the file creation date and time down to the second. there are only 1000 candidates for the seed so that brute-forcing is a practical approach.

solver

from Crypto.Cipher import AES from pwn import * from tqdm import * class WindowsRand: def __init__(self, seed: int): self.seed = seed def rand(self): self.seed = (self.seed * 214013 + 2531011) & 0xFFFFFFFF return (self.seed >> 16) & 0x7FFF def srand(self, seed: int): self.seed = seed def sub_1400015D0(rander: WindowsRand, a1: int, a2: int) -> int: v3 = rander.rand() v4 = rander.rand() * v3 return int(((rander.rand() * v4) & 0xffffffff) // (0xffffffff // (a2 - a1 + 1) + 1) + a1) & 0xffffffff def rev_sub_140001650(a1,a2,rander: WindowsRand): v5s:list[int] = [] for i in range(a2): v5s.append(sub_1400015D0(rander,0, a2 - 1)) for i in reversed(range(len(v5s))): v5 = v5s[i] v3 = a1[i] a1[i] = a1[v5] a1[v5] = v3; return bytes(a1) year = 2024 month = 9 day_of_week = 2 day = 17 hour = 12 minute = 49 second = 20 for i in tqdm(range(1000)): with open("flag.png.laika", "rb") as f: data = list(f.read()) milliseconds = i constant = 0x200ab seed = (((((((((year + constant) * constant + month) * constant + day_of_week) * constant + day) * constant + hour) * constant + minute) * constant + second) * constant + milliseconds) & 0xffffffff) print(f"Seed: {seed}") rand_gen = WindowsRand(seed) key = bytes([(rand_gen.rand() & 0xFF) for _ in range(0x20)]) iv = bytes([(rand_gen.rand() & 0xFF) for _ in range(0x10)]) print(f"[{hex(seed)}] key @ {len(key)} , iv @ {len(iv)}") print(f"Generated AES Key: {key}") print(f"Generated IV: {iv}") revData = rev_sub_140001650(data, len(data),rand_gen) flag_data = b"" aeser = AES.new(key, AES.MODE_CBC, iv) flag_data = aeser.decrypt(bytes(revData)) with open("out/myflag"+str(i) + ".png", "wb") as f: f.write(flag_data)

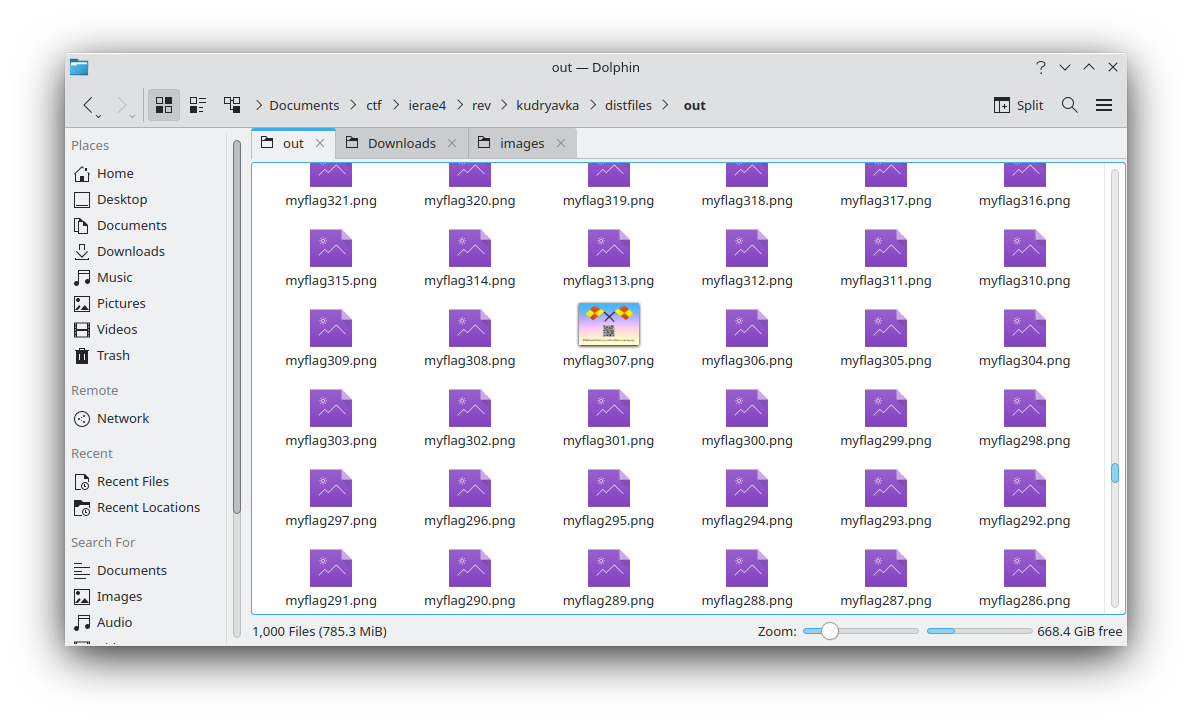

execute the solver and I successfully decrypted the flag.png.laika
